• Larger Dot Matrix LCD display, Dual Display

• Output Power: H: 50W/40W, M: 25W, L: 10W

• CTCSS/DCS: Non-standard CTCSS tones and DCS codes are available

• Emergency Alarm Function

• 1750 Tones

• Audio Compandor

• Talk Around function

• Remote Stun, Remote Kill, Remote Revive

• Busy Channel Lockout

• Keypad Locked

• Squelch Tail Elimination

• Time-out-timer (TOT)

• Manual/PC Programmed

• Multiple Scan Modes

• Software Read and Write Password

• Versatile Encryption Signaling: DTMF Encode & Decode , 2-Tone, 5Tone

• Networking: Individual Call, Group Call, All Call

• Scrambler Function

• PTT ID

• SOS function

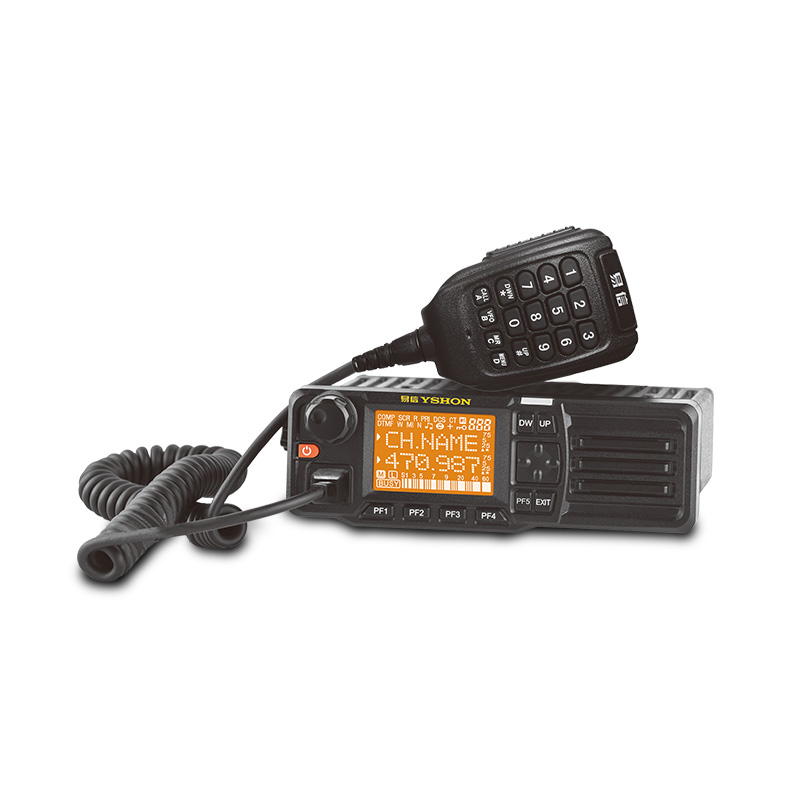

Appearance Introduction

Product Accessories

General
Frequency Range		VHF: 136-174MHz UHF：350-390MHzor400- 470MHz or450-520MHz
Channel Capacity		199
Channel Zone No.		32
Channel Spacing		25kHz/12.5kHz
Antenna Impedance		50Ω
Operating Voltage		DC 13.8V±15%
Current Drain	Standby mode	≤0.3A
	Receiving mode	≤0.8A
	Transmitting mode	≤ 4A (10W) ≤6A (25W) ≤ 10A (50W)
Frequency Stability		±2.5ppm
Operating Temperature		-30℃~+60℃
Dimension (H×W×D)		158mm×155mm×40mm
Weight		1.14 Kg
Transmitter
Carrier output power			50W/25W/10W	45W/25W/10W
Modulation Mode			16KΦF3E/11KΦF3E
Modulation Distortion			≤5％
Maximum Frequency Deviation			≤5kHz/2.5kHz
Transmitting SNR			≥40/35dB
Spurious & Harmonics			-36dBm<1GHz， -30dBm>1GHz
Adjacent Channel Power			≤-70dB/≤-60dB
Receiver
Sensitivity (12db SINAD)			≤0.20uV/≤0.25uV
Audio Power			≥1.0W
Audio Distortion			≤5％
Receiving SNR			≥45/40dB
Adjacent Channel Selectivity			≥70dB/≥60dB
Spurious Response Rejection			≥70dB
Inter-modulation Rejection			≥65dB
