LTE PoC Radio
H48
Weighing just 205g, the H48 delivers lightweight comfort with rugged reliability. Built from durable PC945 material, it operates from -20°C to 55°C and withstands 1.5m drops. Integrated BeiDou/GPS positioning and AI noise cancellation ensure efficient dispatch and clear communication in demanding environments. Powered by a high-density 3500mAh battery, it provides long-lasting performance for security, logistics, retail, and field operations.
Product Orientation Map
Features
Specifications
Accessories
Multi-Network Compatibility
Supports CDMA, GSM, WCDMA, and LTE networks to ensure flexible deployment and stable wide-area communication across different regions and carriers.
GPS / GLONASS / BeiDou Positioning
Integrated multi-satellite positioning system delivers fast and accurate location tracking for enhanced operational visibility and efficient fleet management.
Functional Dispatching System
Built-in professional dispatching platform enables real-time communication, task allocation, and centralized command for improved team coordination.
Android Operating System
Powered by the Android OS for enhanced flexibility, smooth performance, and support for customized industry applications.
WiFi Connectivity (Optional)
Optional WiFi support provides additional network access and flexible data connectivity in indoor or controlled environments.
Bluetooth (Optional)
Optional Bluetooth functionality enables seamless pairing with wireless accessories for greater operational convenience.
Compact & Heavy-Duty Design – IP54 Rated
Engineered with a compact yet rugged structure, meeting IP54 standards for dust and water resistance to ensure reliable performance in demanding work conditions.

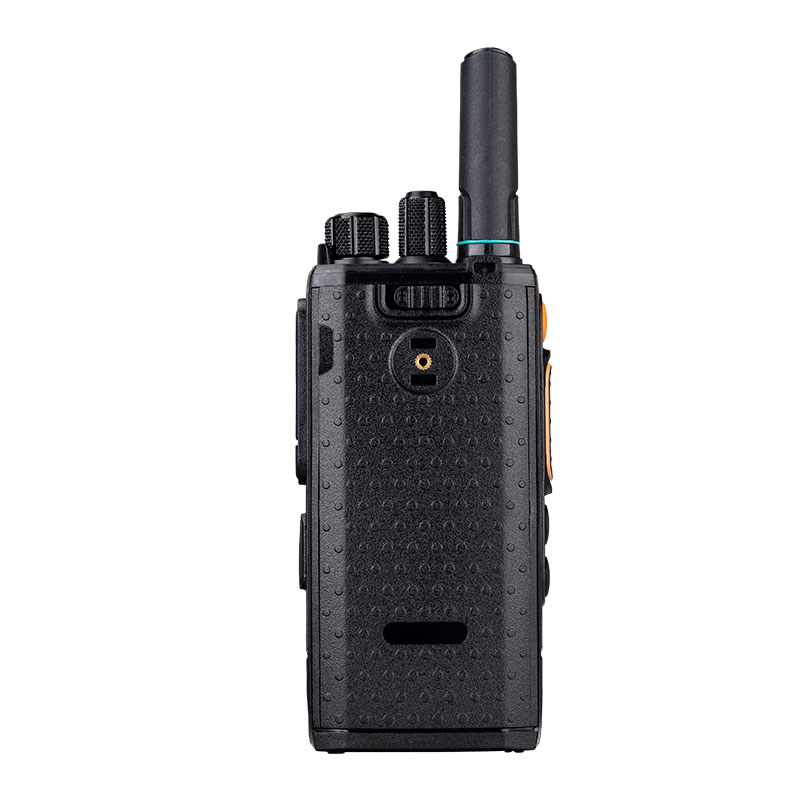

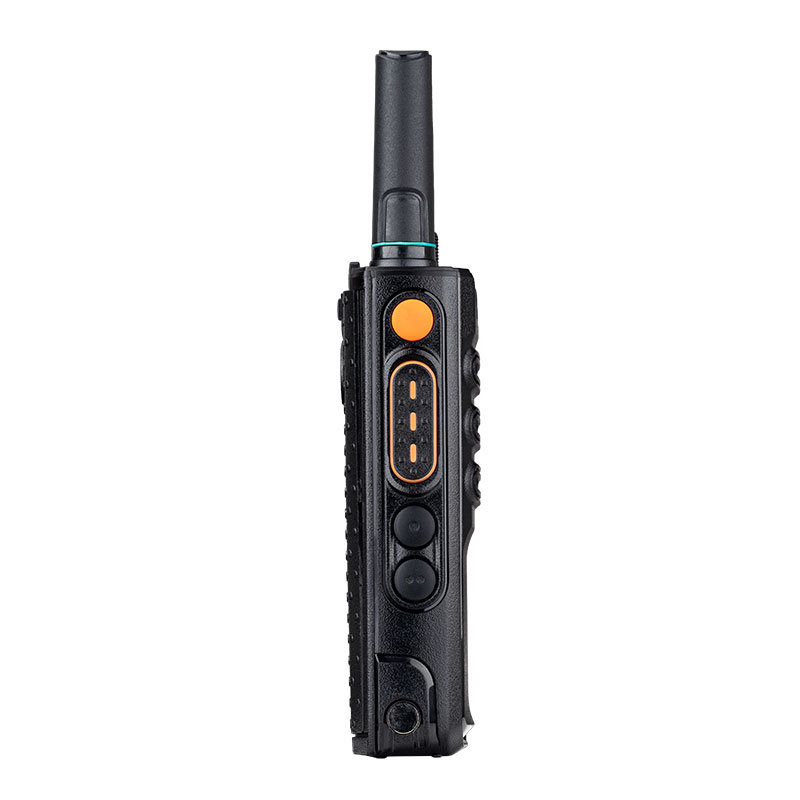

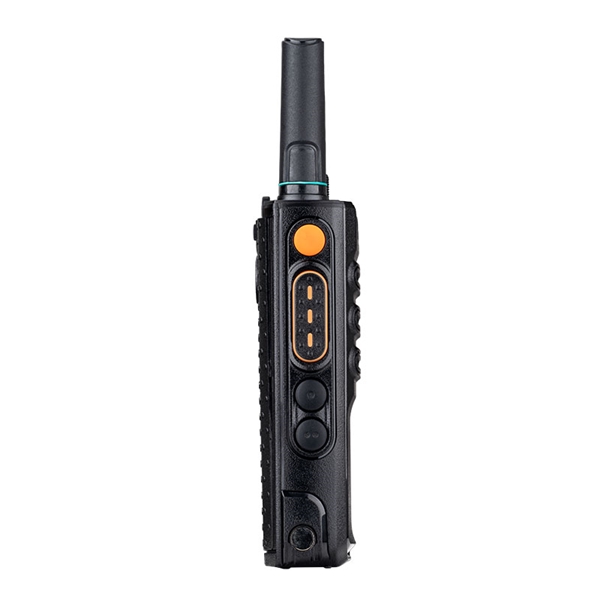

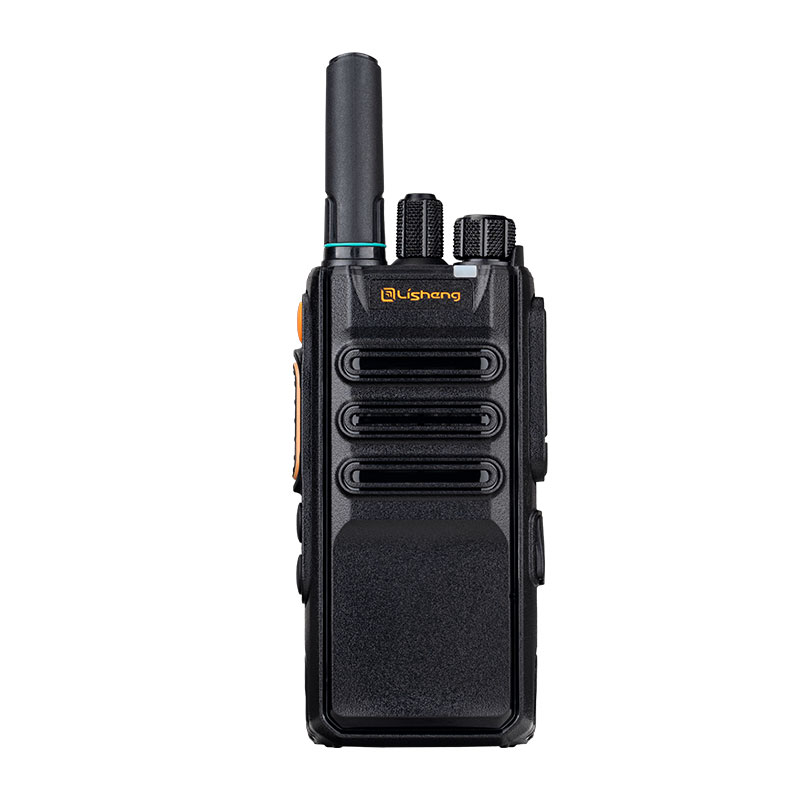

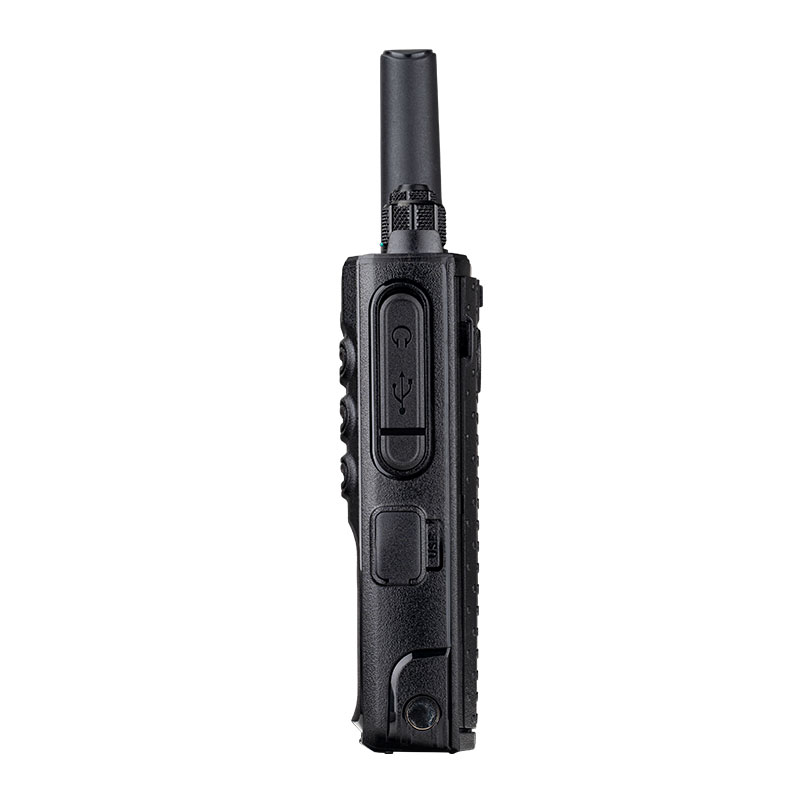

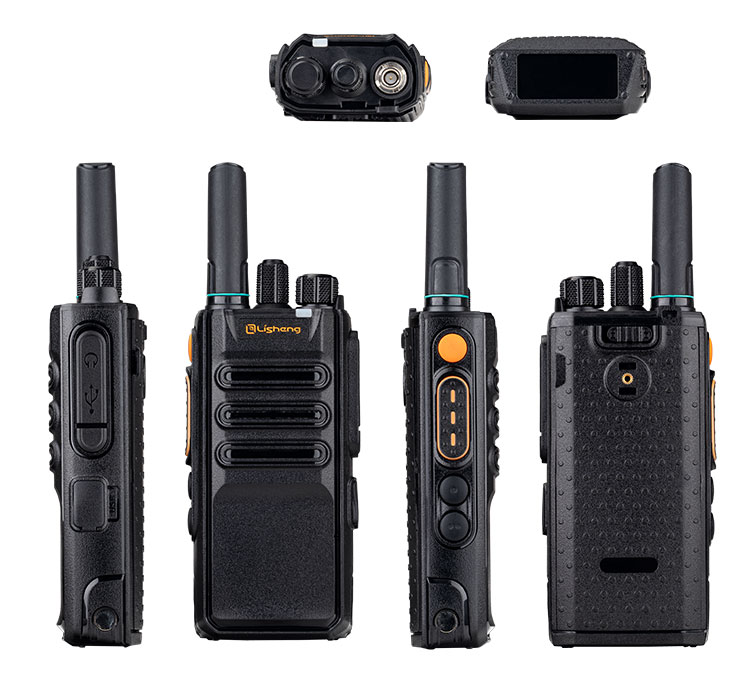

Appearance Introduction
Product Accessories
Battery
Belt Clip
AC Adaptor
Charger Pod
Hand Strap
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Item
Details
Remark
Network
Asia Version
■GSM: Band2/3/8
■CDMA: 1X BC0
■CDMA: 2000 Evdo Rev.A 800MHz
■TD-SCDMA: Band34/39
■WCDMA: Band1/5/8
■TDD-LTE: Band38/39/40/41
■FDD-LTE: Band1/3/5/8
Frequency Bands
Customizable
Upon Request
Euro Version
■GSM: Band2/3/5/8
■WCDMA: Band1/2/5/8
■TDD-LTE: Band38/40
■FDD-LTE: Band1/2/3/5/7/
8/20/28
US Version
■GSM: 850MHz,1900MHz
■WCDMA: Band1/2/4/5/8
■FDD-LTE: Band1/2/4/5/7/
12/13/17/25/26
Bearer
LTE
TDD CAT4, FDD CAT4
Dimensions
Includes Battery
134mm*61mm*33mm
Weight
Includes Battery and Antenna
Around 205g
Connectors
Charger
Support External Charging Pin
Type-C Connector
YES
Charging & data transmit
SIM Card
1
Battery
Type
Li-polymer
Capacity（mAh）
3500
Charger current
1000mA
Charging Time
≤ 6 Hours
Memory
ROM
4GB
RAM
4Gb LPDDR2
Sound
MIC
1
Line-Control
earphone
YES
Speaker
8R/1W
Speaker PA
YES
Bluetooth
BT
BT4.0
WIFI
Standard
802.11b/g/n
1X1
WIFI Direct
YES
Wi-fi Router Android Hotspot(Wi-Fi Tethering)
YES
Positioning
GPS
YES
Hybrid
Positioning
Beidou
YES
Antenna
Main Antenna
YES
Auxiliary Antennna
YES
WIFI/BT
YES
GPS/BD
YES
Others
Working Temperature
-20℃ ~ 55℃
Dropping
1.5m
Product accessories
Battery
Belt Clip
AC Adaptor
Charger Pod
Hand Strap
