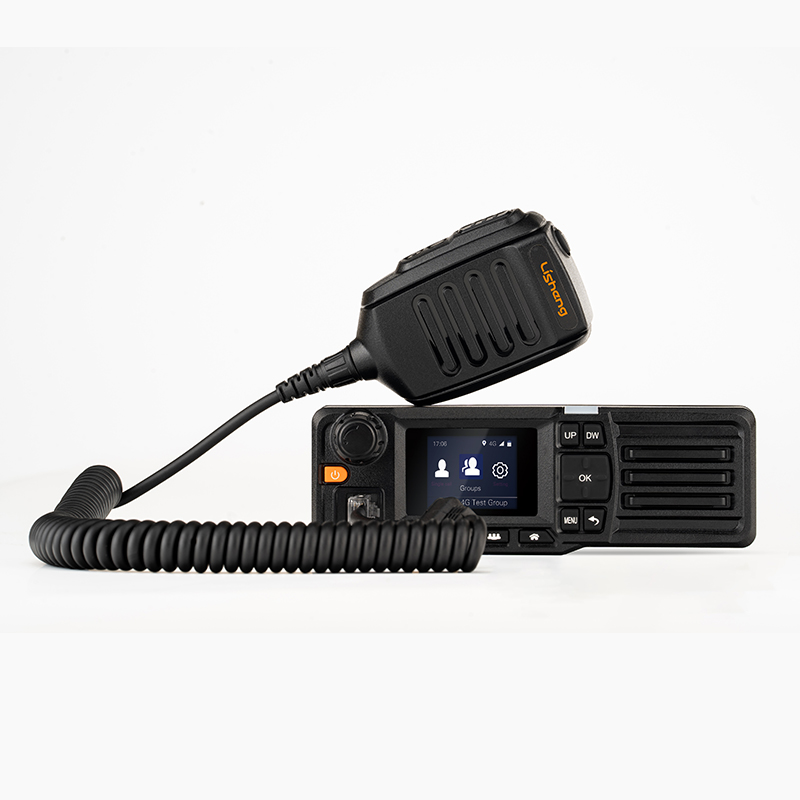

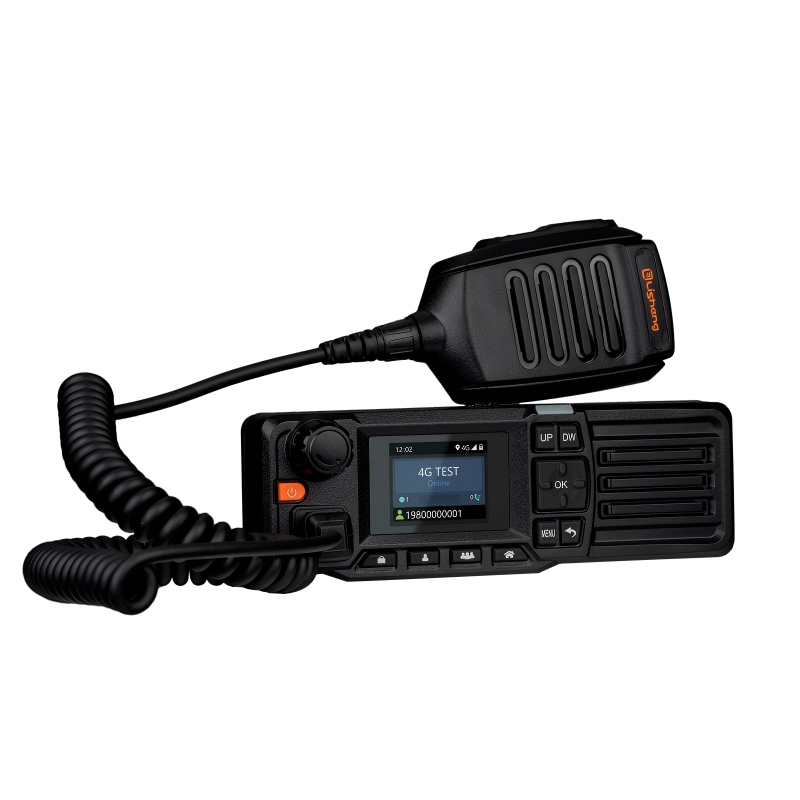

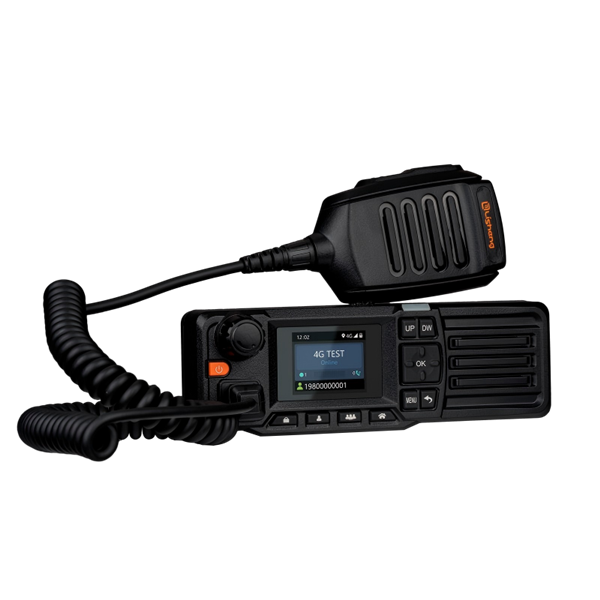

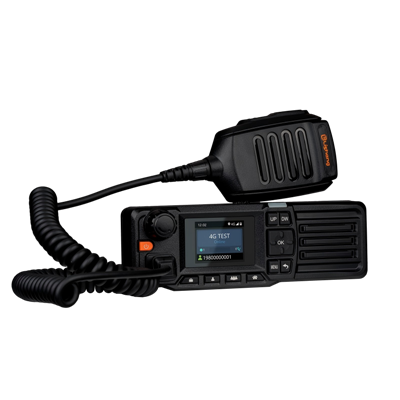

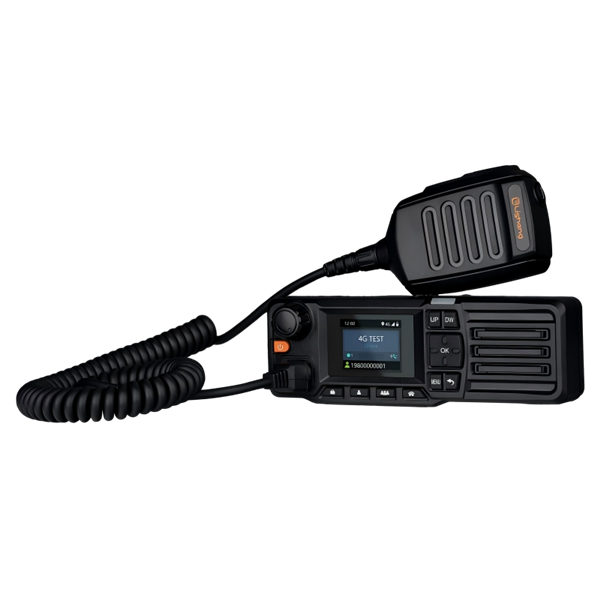

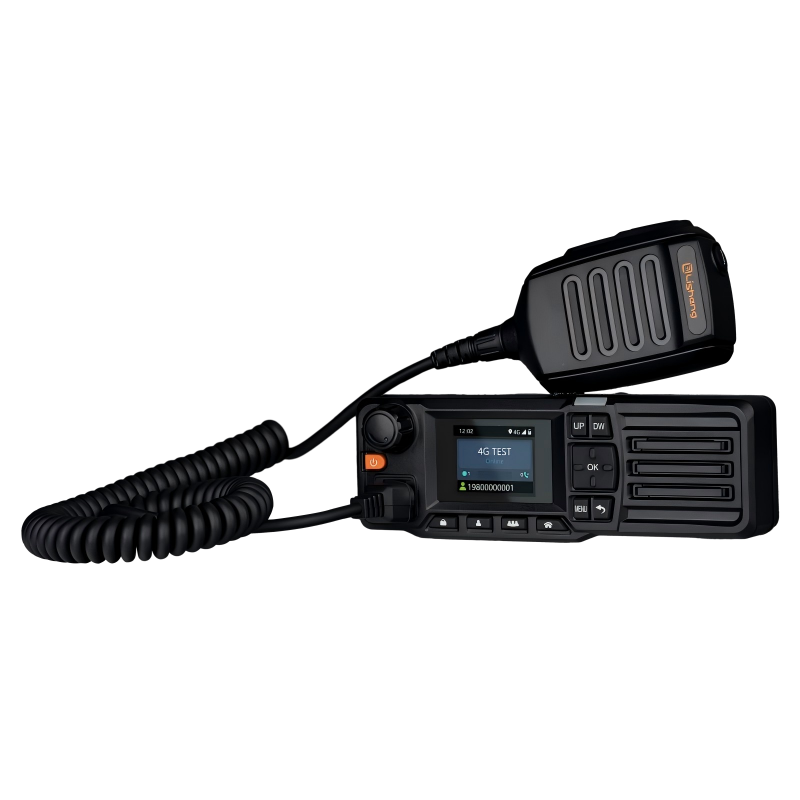

D828 4G Broadband Mobile Radio

D828

The D828 Push-to-Talk over Cellular (PoC) mobile radios are professional-grade communications devices that provide clear push-to-talk communication, instant group calling, and location tracking for reliable and efficient fleet dispatching and make a safe communications while driving.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Install in the car, connect you anywhere

More efficient, save more time and cost.

Push to talk over cellular, support CDMA/GSM/WCDMA/LTE

Depend on powerful cellular, you could receive the call anytime, anywhere, and makes the communication seamless and efficient.

GPS/Glonass/Beidou navigation

Using traditional trunking solution would occur high cost, the GPS function in H28Y supply you high efficiency in trunking, also improved productivity of the assignment can now be done based on the location by console.

Functional dispatching system

The Dispatch Console allows efficient management to increase productivity.

Android operating system

It is Android 5.1.1, more flexible for users to adopt kinds of platform.

WiFi Function

Under WiFi coverage, users can freely choose to use WiFi connect, save cost on network.

Application:

● Unique for:Security Guard, Construction site, Industry Production site, Commercial use like: Hotel, Hospital, University, Commercial Event; Sports

● Popular for:Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

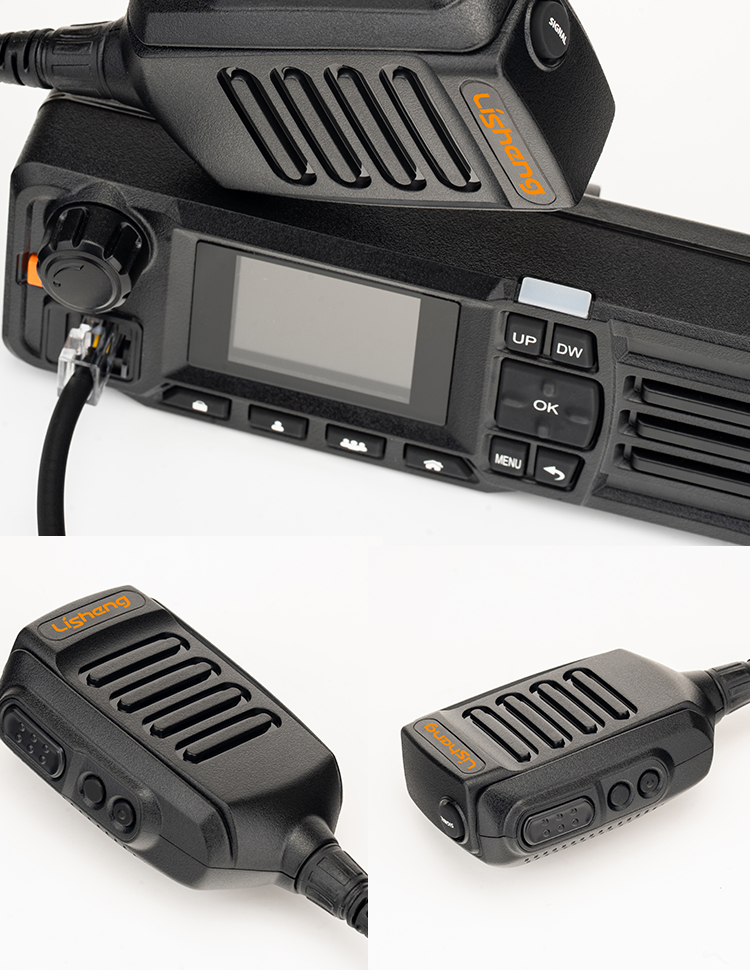

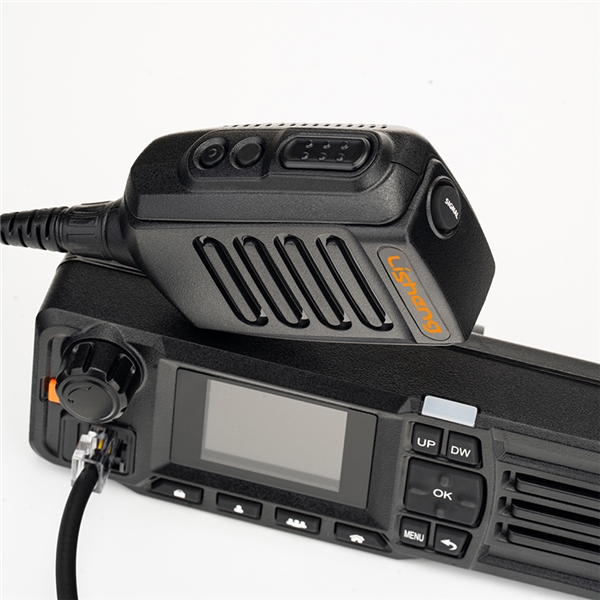

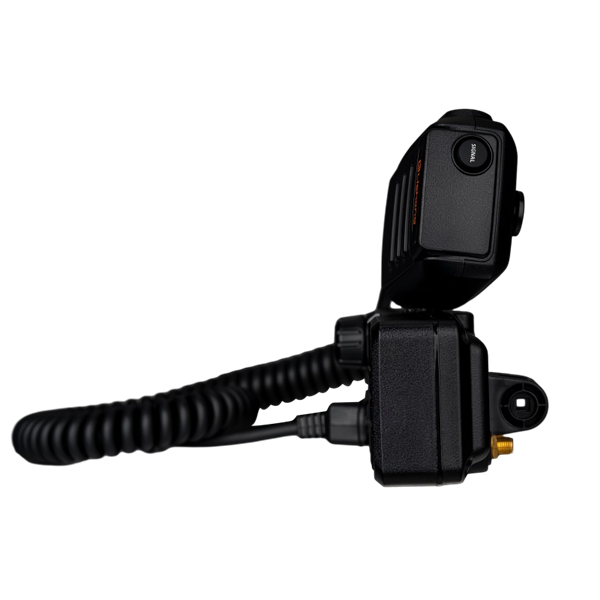

Appearance Introduction


Product Accessories

  • Suction Cup Bracket

    Suction Cup Bracket

  • Mouting Bracket

    Mouting Bracket

  • Hanger

    Hanger

  • GPS Antenna

    GPS Antenna

  • Microphone

    Microphone

  • Cigarette Lighter

    Cigarette Lighter

Item Details Remark
Network European/Asia version ■GSM:Band2/3/5/8
■WCDMA:Band1/2/5/8
■TDD-LTE: Band38/40
■FDD-LTE:Band1/2/3/5/7/8/20/28
Frequency bands can be
customized
Asia version ■GSMBand2/3/8
■CDMA
1X BC0
■CDMA2000
Evdo Rev.A 800MHz
■TD-SCDMA
Band34/39
■WCDMA: Band1/5/8
■TDD-LTE: Band38/39/40/41
■FDD-LTE
Band1/3/5/8
America version ■GSM:850MHz,1900MHz
■WCDMA:Band1/2/4/5/8
■FDD-LTE:Band1/2/4/5/7/12/13/17/25/26
Bearer CAT 4 TDD CAT4, FDD CAT4
Dimensions Dimensions 171mm*63mm*74mm
Weight Total Weight 约301g Radio body only
LCD Sizeinch 1.77
Resolution 160*128(Piexl)
TP TP N/A
Keys Normal Home Key, Individual Call Key, Group Call Key, Lock Key, Menu Key, Up Key, Down Key, Back Key, OK Key, Power Key, Rotary Knob
back Key N/A
Numeric Key NO
Side Key N/A
Top Key N/A
Connectors Charger Vehicle 13.8V
USB YES Data Transmit
SIM Card 1 SIM card
Memory Card NO
Memory ROM 4GB
RAM 4Gb LPDDR2
Sound MIC External
Line-Control Earphone NO
Speaker YES 8Ω 3W
Speaker PA YES
BluetoothOptional BT YES BT4.0
WIFI
Optional
Standard 802.11b/g/n 1X1
WIFI Direct YES
Wi-fi Router  Android Hotspot(Wi-Fi Tethering) YES
GPS GPS YES
Antenna LTE Main Antenna External LTE Panel Antenna SMA Jack
Auxiliary Antenna FPC
WIFI/BT Antenna FPC
GPS/BD Antenna External Active Antenna SMA Jack
Other Suction Cup Bracket YES
Operating Temperature Range -20 ~ 55
Ingress Protection (IP) Rating IP54

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.

Product accessories

  • Suction Cup Bracket

    Suction Cup Bracket

  • Mouting Bracket

    Mouting Bracket

  • Hanger

    Hanger

  • GPS Antenna

    GPS Antenna

  • Microphone

    Microphone

  • Cigarette Lighter

    Cigarette Lighter
