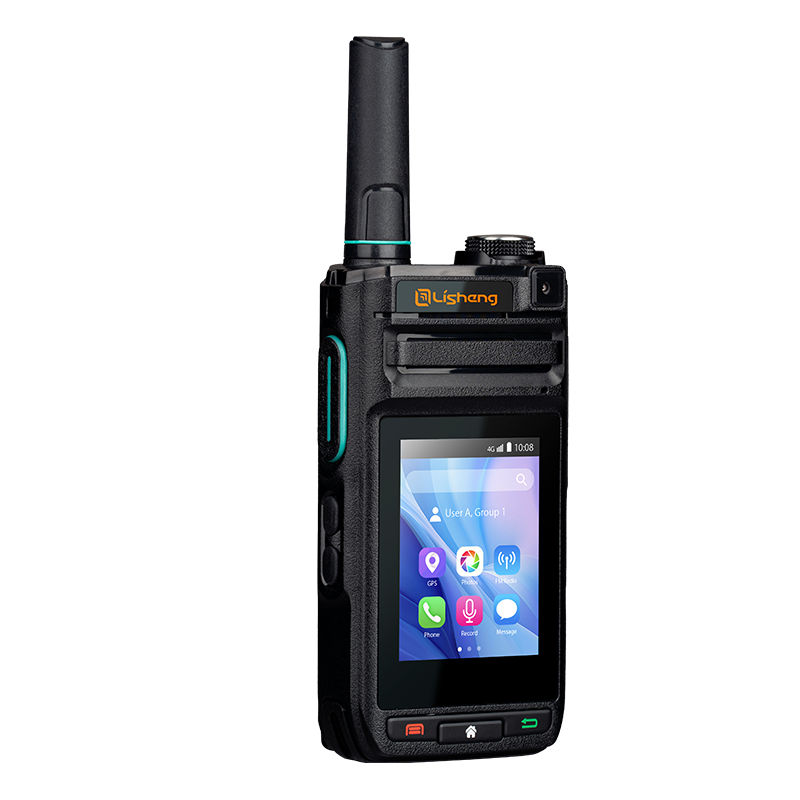

3588S Large Display Smart PoC Radio with IP68

Q-3588S

The 3588s is a handheld smart Push-to-Talk over Cellular (PoC) radio. It combines the advantages of a compact mobile computer with ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It supports Android business apps to provide unified operations and communications in a single device. On the basis of 3288T, IP68 standards and NFC functions have been added, which can meet the needs of most customers.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Q-3588S is a 4G public network explosion-proof hand-holding end end-of-the-tier end end of the force communication. The product design and quality are designed in strict accordance with China's latest explosion-proof electrical standards. It is equipped with high-quality explosion-proof batteries. Communication.

IP68 protection levels ensure that the terminal can still provide a stable and reliable use guarantee even under various harsh environments.

The Q-3588S public network terminal operates on 2G, 3G, 4G, and Wi-Fi networks, supporting advanced data services such as video transmission, GPS positioning, and instant messaging. Featuring a 2.4-inch HD touchscreen along with 2MP front and 8MP rear cameras, it not only meets the basic needs for high-definition voice intercom but also enables multimedia file sharing and real-time video services.


Features

• 4G LTE, nationwide communication without distance limits
• 2.4-inch high-sensitivity touch screen
• GPS positioning (Optional)
• HD front & rear cameras
• Bluetooth
• Wi-Fi connectivity
• IP68-rated waterproof
• Supports third-party apps
• Built-in voice recorder
• Fingerprint Recognition
• NFC

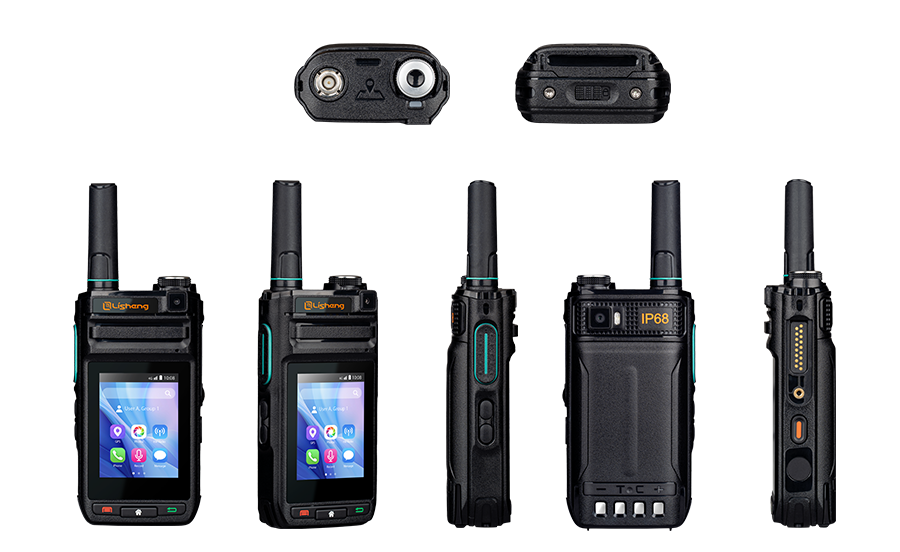

Appearance Introduction







Product Accessories

  • Power Adapter

    Power Adapter

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Hand Strap

    Hand Strap

  • Charger Pod

    Charger Pod

Item Details Remark
Network Euro&Asia Version ■GSM: B2/3/5/8
■WCDMA: B1/2/5/8
■TDS: B34/39
■FDD: B1/3/5/7/8/20/28A/28B
■TDD: B38/39/40/41
■CDMA2000: 1X/EVDO BCO
Frequency bands can be
customized
US Version ■GSM: B2/3/5/8
■WCDMA: B1/B2/4/5/8
■FDD: B2/3/4/5/7/8/12/13/17/28AB/B66
■TDD: B38/40
Operation System Android  TDD CAT4, FDD CAT4
Dimensions Includes Battery 120mm*63mm*31mm
Weight Includes Battery and Antenna Around 229g
LCD Sizeinch 2.4
Resolution 240*320
Touch Screen YES
TP Capacitive Touch Screen Multi-Touch
Cameras Rear Camera 8 Mega Pixels, Autofocus, CMOS, Flash
Front Camera 2 Mega Pixels, CMOS
Sensor G-sensor YES
Connectors Charger Support External Charging Pin
M6 Connector YES
SIM Card Single Card
SD Card YES
Battery  Type Li-polymer
CapacitymAh 3800
Charger Current 1000mA Maximum Charging Current: 1.5A
Charging Time ≤ 6 Hours
Memory ROM 8GB
RAM 1GB
Sound MIC 2
Line-Control Earphone YES
Speaker YES
Speaker PA YES
Bluetooth BT4.0
WIFI 802.11 b/g/n, 2.4G
Vibration Support
NFC
Optional
NFC YES
Fingerprint
Optional
Identification/Collection YES
Positioning GPS YES
Antenna Main Antenna Rodlike
Auxiliary Antenna  FPC
WIFI/BT FPC
GPS/BD Ceramic Passive Antenna
Others Working Temperature -20 ~ 55
Ingress Protection (IP) Rating IP68
Dropping 1.2m

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
