GP588 Mini Pocket Broadband Radio
GP-588
The GP588 is an ultra-compact, rugged, and easy-to-operate push-to-talk radio that enables connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It is cost-effective, and surprisingly feature rich for the price. The compact size enables one-hand operation, and can be carried in pocket, worn on the standard belt clip, or worn on a lanyard.
Product Orientation Map
Features
Specifications
Accessories
Push to talk over cellular, support CDMA/GSM/WCDMA/LTE
Depend on powerful cellular, you could receive the call anytime, anywhere, and makes the communication seamless and efficient
Mini Size
Small and easy to carry, very flexible using in multiple places.
GPS/Glonass/Beidou navigation
Using traditional trunking solution would occur high cost, the GPS function in R68D supply you high efficiency in trunking, also improved productivity of the assignment can now be done based on the location by console.
Functional dispatching system
The Dispatch Console allows efficient management to increase productivity
Android operating system
It is Android 5.1.1, more flexible for users to adopt kinds of platform.
WiFi Function
Under WiFi coverage, users can freely choose to use WiFi connect, save cost on network.
Compact & Heavy-duty design
With IP54 design, GP588 can uses in variety environment.
Huge battery capacity
With 3500mAh capacity, GP588 supply you long standby time.
Application:
● Unique for:Security Guard, Construction site, Industry Production site, Commercial use like: Hotel, Hospital, University, Commercial Event; Sports
● Popular for:Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

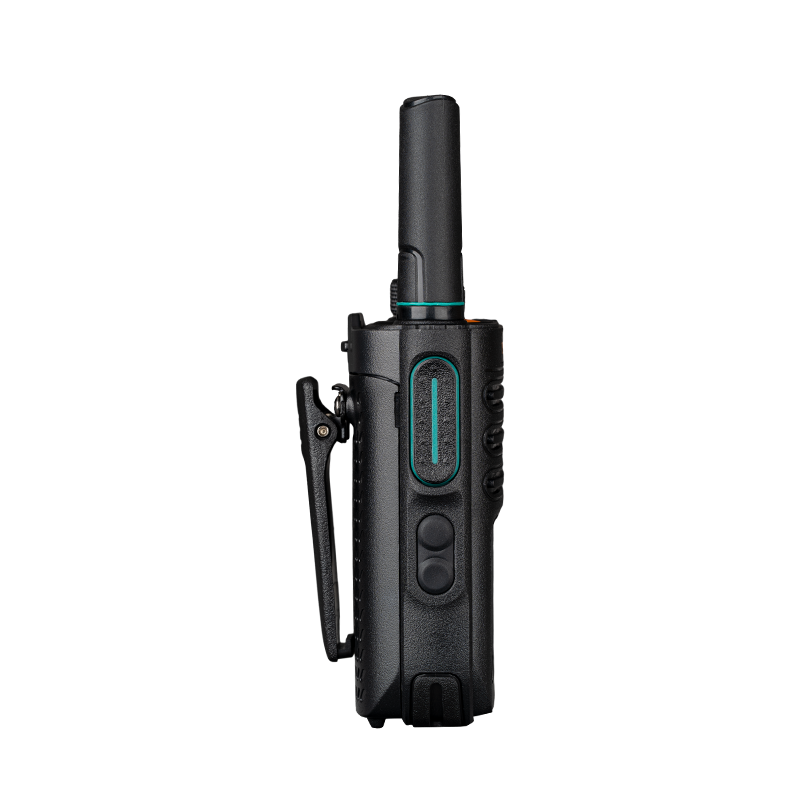

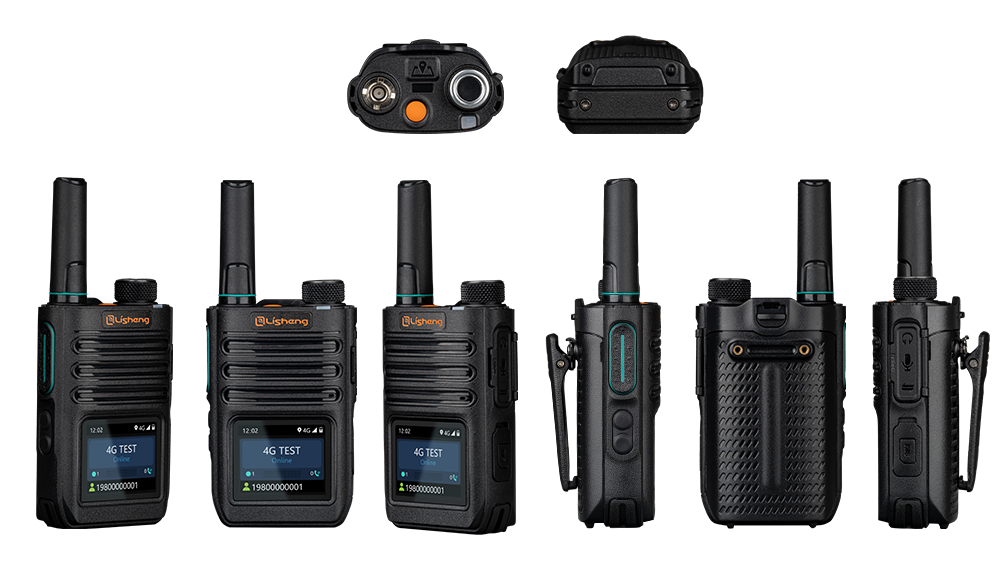

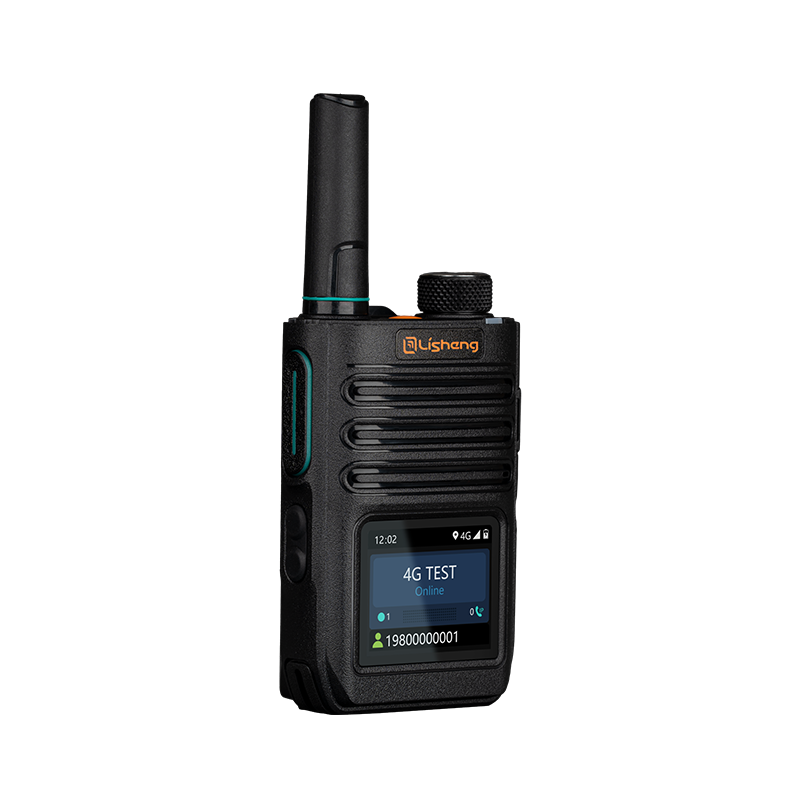

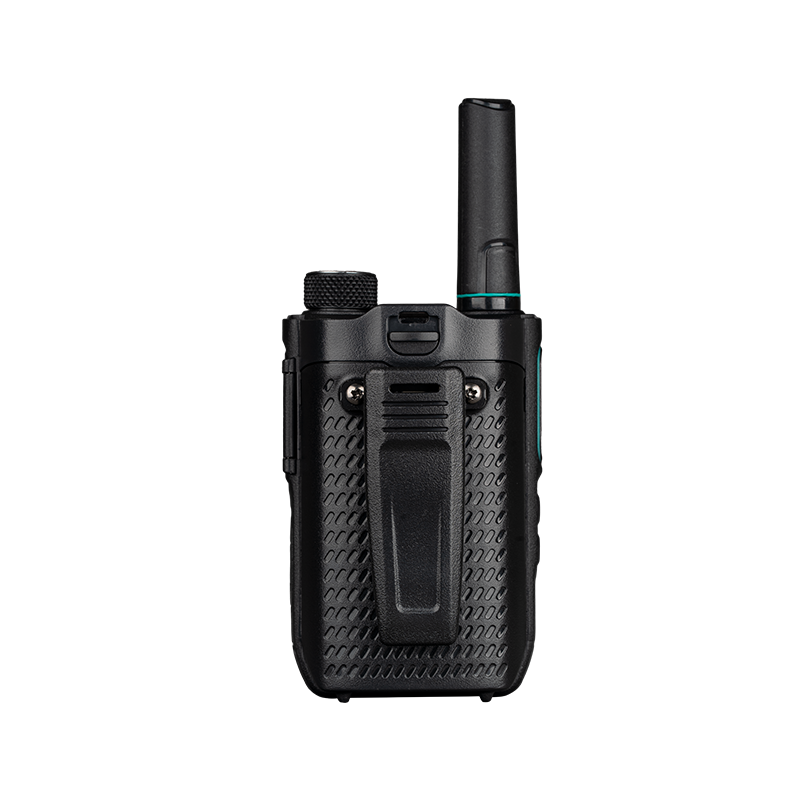

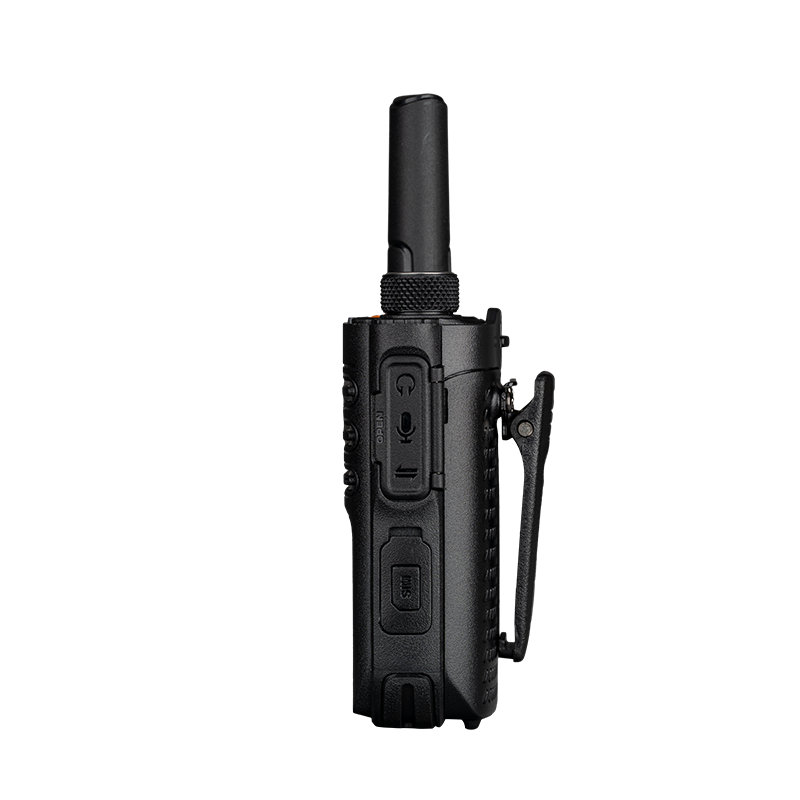

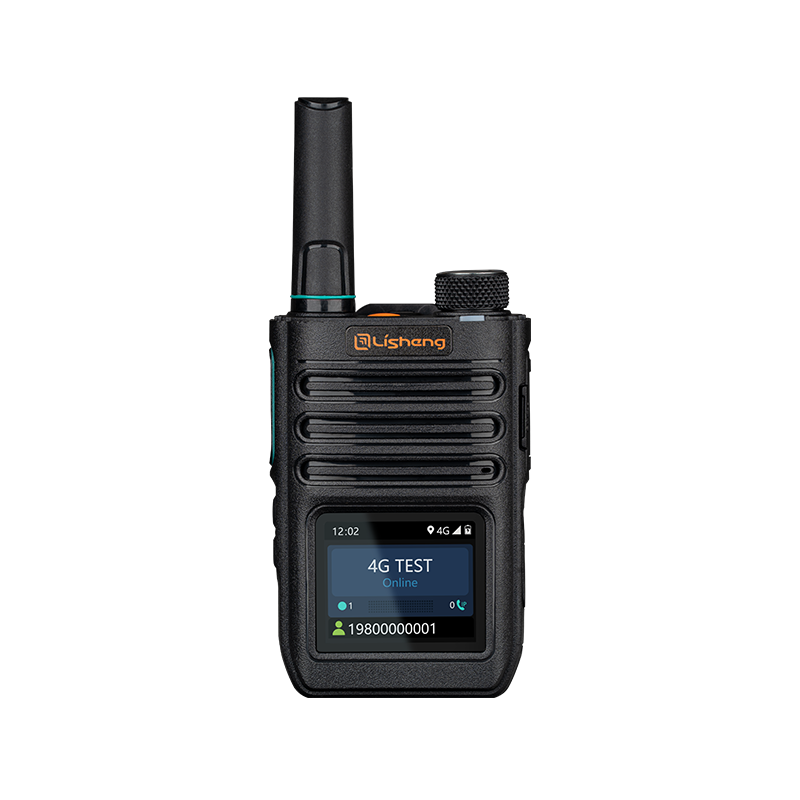

Appearance Introduction

Product Accessories
Antenna
Battery
Belt Clip
Charger
Hand Strap
| Item | Description | Remark | |
| Network |
L813 Asia Version |
■GSM: Band2/3/8 ■CDMA:1X BC0 ■CDMA2000:Evdo Rev.A 800MHz ■TD-SCDMA:Band34/39 ■WCDMA: Band1/5/8 ■TDD-LTE:Band38/39/40/41 ■FDD-LTE: Band1/3/5/8 |
Frequency bands can be customized |
|
L811 EU Version |
■GSM: Band2/3/5/8 ■WCDMA: Band1/2/5/8 ■TDD-LTE: Band38/40 ■FDD-LTE: Band1/2/3/5/7/8/20/28 |
||
|
L817 (America version) |
■GSM: 850MHz,1900MHz ■WCDMA: Band1/2/4/5/8 ■FDD-LTE: Band1/2/4/5/7/12/13/17/25/26 |
||
| Operation System | Andriod | TDD CAT4, FDD CAT4 | |
| Dimensions | Includes Battery | 102mm*61mm*37mm | |
| Weight | Includes Battery and Antenna | Around 186g | |
| Display | Size(inch) | 1.77 | |
| Resolution | 160*128(Pixel) | ||
| Connectors | Charger | YES | |
| Type-C | Charging & Data Transfer |
Charging, Data Transmit |
|
| SIM Card | Single Card | ||
| Battery | Type | Li-polymer | |
| Capacity(mAh) | 3500 | ||
| Charger Current | 1000mA | ||
| Charging Time | ≤ 6 Hours | ||
| Memory | ROM | 4GB | |
| RAM | 4Gb LPDDR2 | ||
| Sound | MIC | 1 | Talking MIC |
|
Line-Control Earphone |
YES | 8R/1W | |
| Speaker | YES | ||
| Speaker PA | YES | BT4.0 | |
|
Bluetooth (Optional) |
Bluetooth | YES | |
|
WIFI (Optional) |
Standard | 802.11b/g/n | 1X1 |
| WIFI Direct | YES | ||
| Wi-fi Router Android Hotspot(Wi-Fi Tethering) | YES | ||
| GPS | GPS | YES | |
| Antenna | 4G Main Antenna | Rodlike | |
| Auxiliary Antenna | FPC | ||
| WIFI/BT Antenna | FPC | ||
| GPS/BD Antenna | Ceramic Passive Antenna | ||
| Others | Belt Clip | Support | |
| Working Temperature | -20℃ ~ 55℃ | ||
| Ingress Protection (IP) Rating | IP54 | ||
| Dropping | 1.2m | ||
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Antenna
Battery
Belt Clip
Charger
Hand Strap
