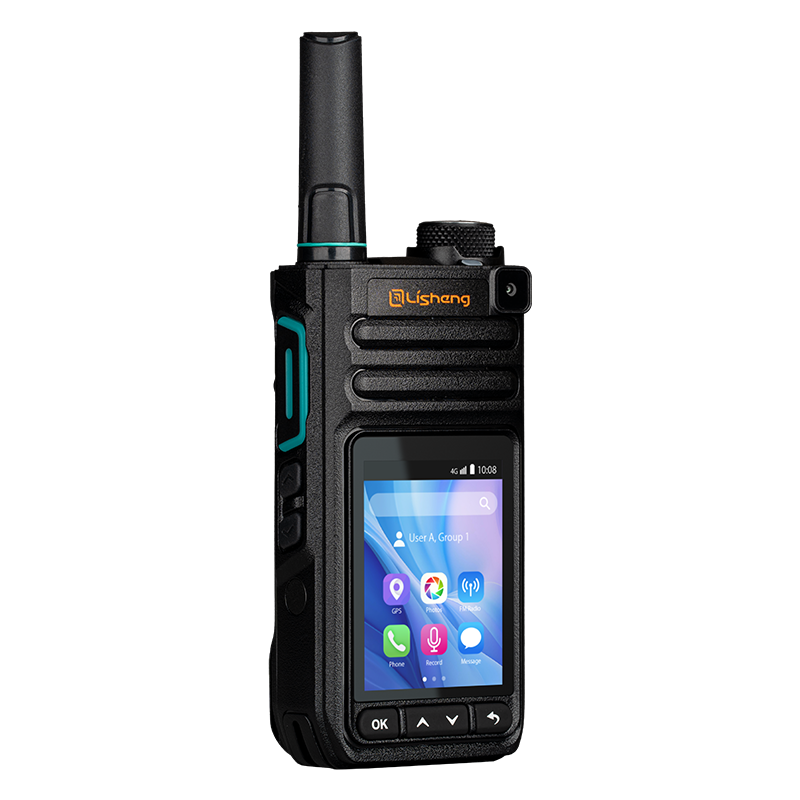

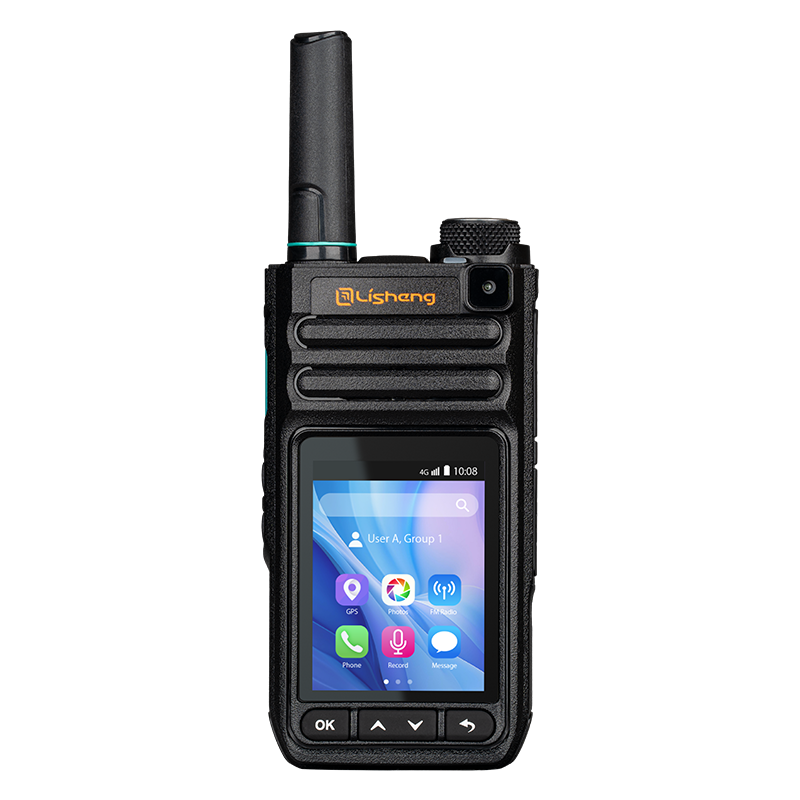

3288T Large Display Smart PoC Radio
3288T
The 3288T is a handheld smart Push-to-Talk over Cellular (PoC) radio. It combines the advantages of a compact mobile computer with ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It supports Android business apps to provide unified operations and communications in a single device.
Product Orientation Map
Features
Specifications
Accessories
Features
● 2G/3G/4G/WIFI, to deliver unlimited talking distance.
● 2.4-inch High-sensitivity Touch Screen, easier to operate.
● Dual cameras:
1. Front camera: 2-megapixel, CMOS
2. Rear camera: 8-megapixel, CMOS, with automatic focus function and flashlight.
● Bluetooth: can carry with Bluetooth earphones.
● Wifi
● NFC function (Optional):
1. NFC Patrol: With a powerful platform, the patrol function can be used in various scenes, such as staff going out to work, work attendance, patrolling, and other scenes.
2. When the device supports NFC, Android Beam will be enabled automatically. When two NFC-enabled devices are close together, they can share certain information, such as pictures and contact details.
● GPS: GPS navigation, radio track playback, Visualization management platform Visualization dispatch platform.
● Android-based system, compatible with most platforms.
● IP54

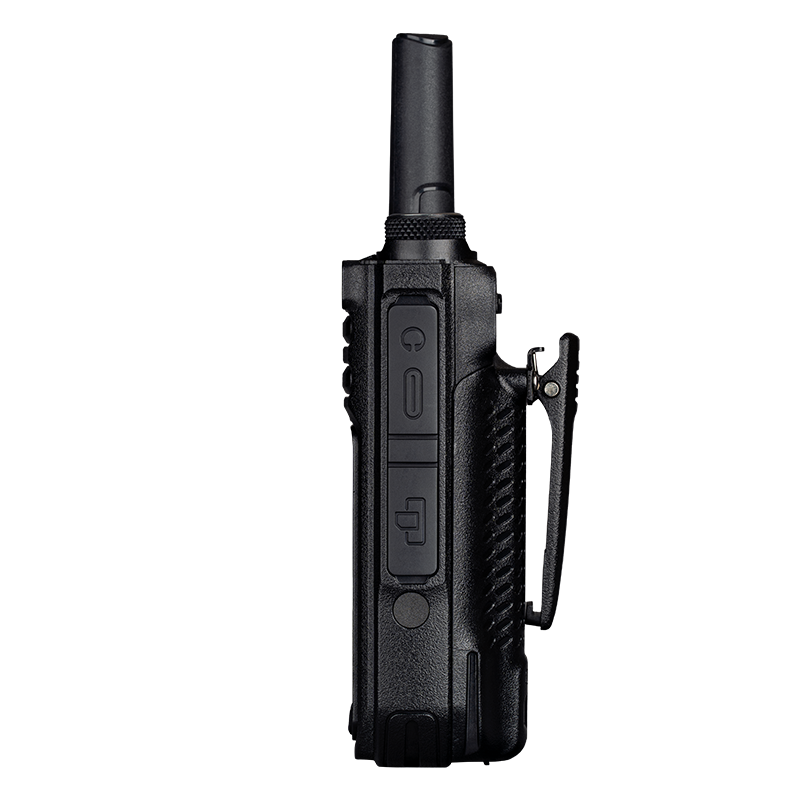

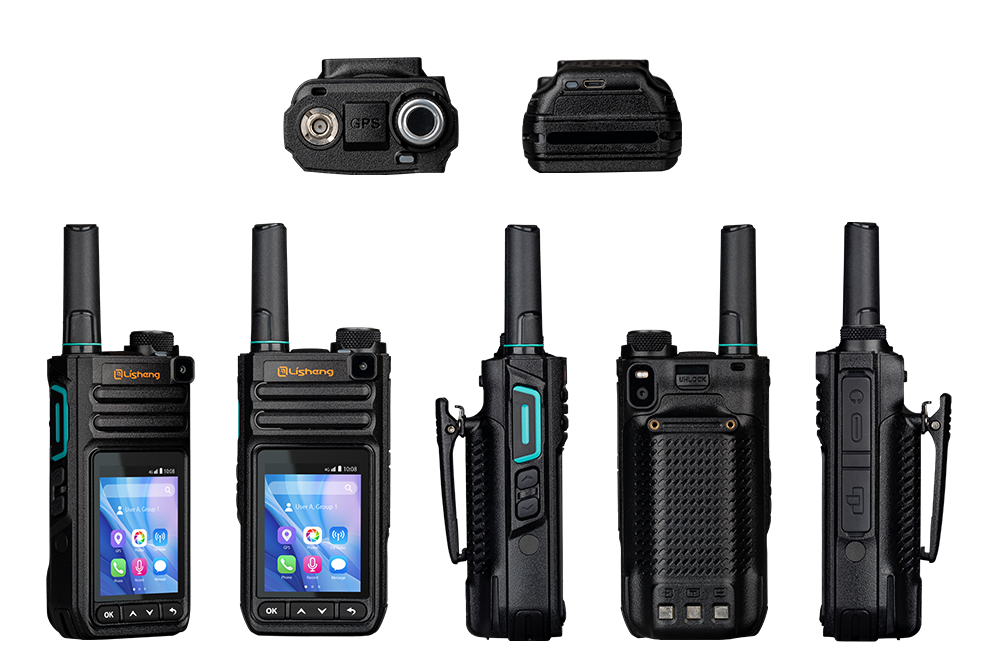

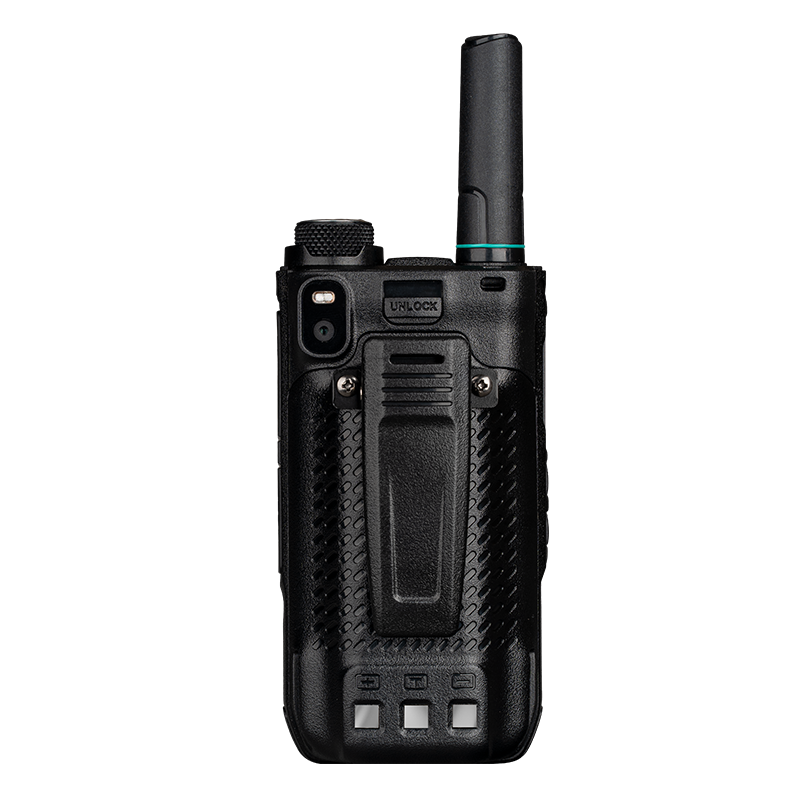

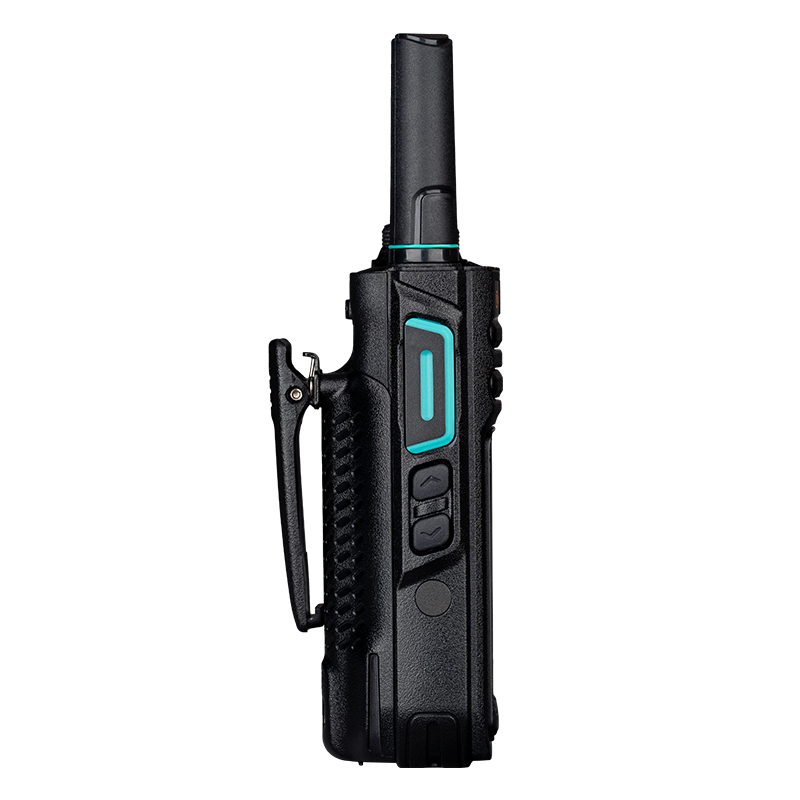

Appearance Introduction
Product Accessories
Antenna
Belt Clip
Battery
Hand Strap
Adaptor
| Item | Details | Remark | |
| Network | Euro&Asia Version |
■GSM: B2/3/5/8 ■WCDMA: B1/2/5/8 ■TDS: B34/39 ■FDD: B1/3/5/7/8/20/28A/28B ■TDD: B38/39/40/41 ■CDMA2000: 1X/EVDO BCO |
Frequency bands can be customized |
| US Version |
■GSM: B2/3/5/8 ■WCDMA: B1/B2/4/5/8 ■FDD: B2/3/4/5/7/8/12/13/17/28AB/B66 ■TDD: B38/40 |
||
| Operation System | Andriod | TDD CAT4, FDD CAT4 | |
| Dimensions | Includes Battery | 120mm*61mm*41mm | |
| Weight | Includes Battery and Antenna | Around 250g | |
| Display | Size（inch） | 2.4 | |
| Resolution | 240*320 | ||
| Touch Screen | Support Touch Screen | ||
| TP | Capacitive Touch Screen | Multi-Touch | |
| Cameras | Rear camera | 8 Mega Pixels, Autofocus, CMOS, Flash | |
| Front camera | 2 Mega Pixels， CMOS | ||
| Connectors | Charger | Supports External Charging Pin | |
| Type-C | YES | Charging and Data Transmit | |
| SIM Card | Single Card | ||
| SD Card | YES | ||
| Battery | Type | Li-polymer | |
| Capacity（mAh） | 4400 | ||
| Charger current | 1000mA | ||
| Charging Time | ≤6 Hours | ||
| Memory | ROM | 8GB | |
| RAM | 1GB | ||
| Sound | MIC | 2 | |
| Line-Control Earphone | YES | ||
| Speaker | YES |
|
|
| Speaker PA | YES | ||
| Flashlight | Flashlight | YES | |
| Bluetooth | BT4.2 | YES | |
| WIFI | 2.4G/5G | ||
| NFC | NFC | Optional | |
| Positioning | GPS | YES | |
| Antenna | Main Antenna | Rodlike | |
| Auxiliary Antenna | FPC | ||
| WIFI/BT | FPC | ||
| GPS/BD | Ceramic Passive Antenna | ||
| Others | Belt Clip | Support | |
| Working Temperature | -20℃ ~ 55℃ | ||
| Ingress Protection (IP) Rating | IP54 | ||
| Dropping | 1.2m | ||
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Antenna
Belt Clip
Battery
Hand Strap
Adaptor
