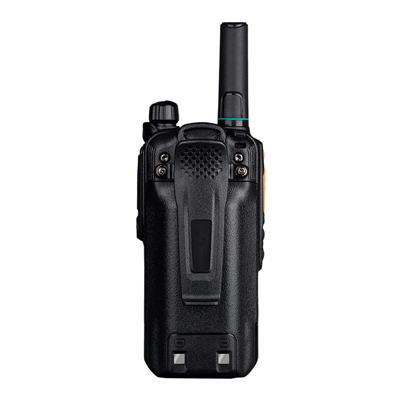

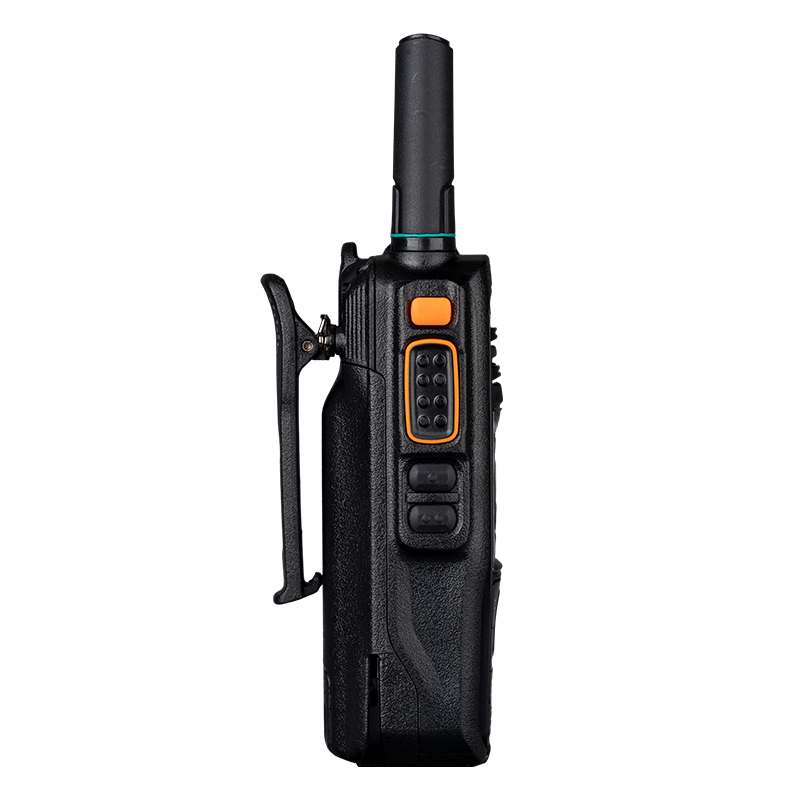

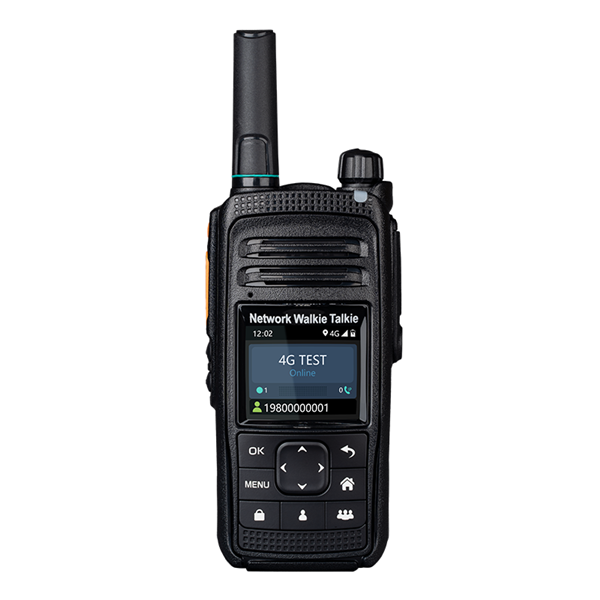

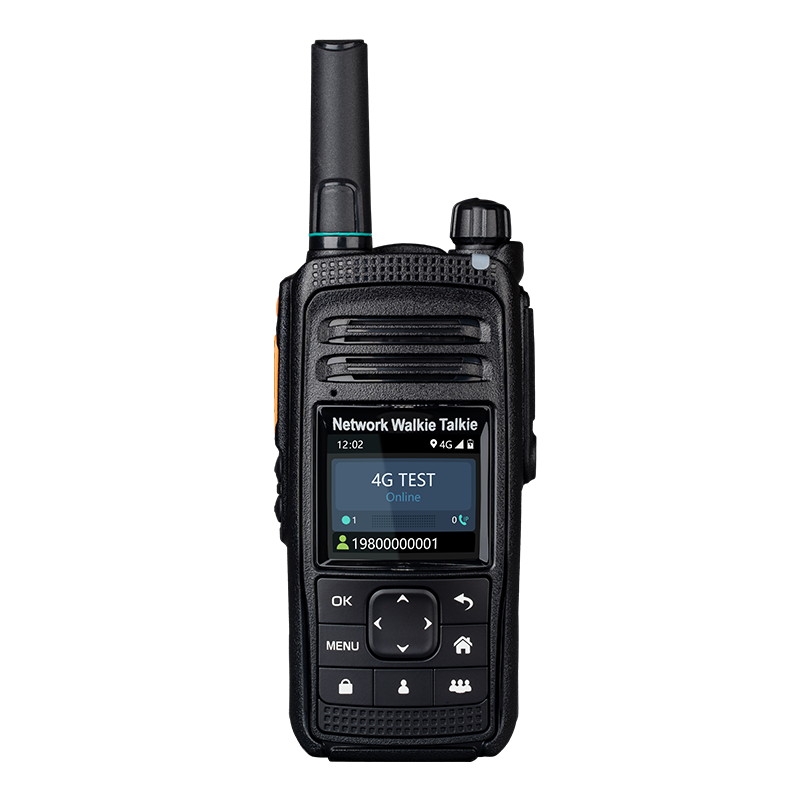

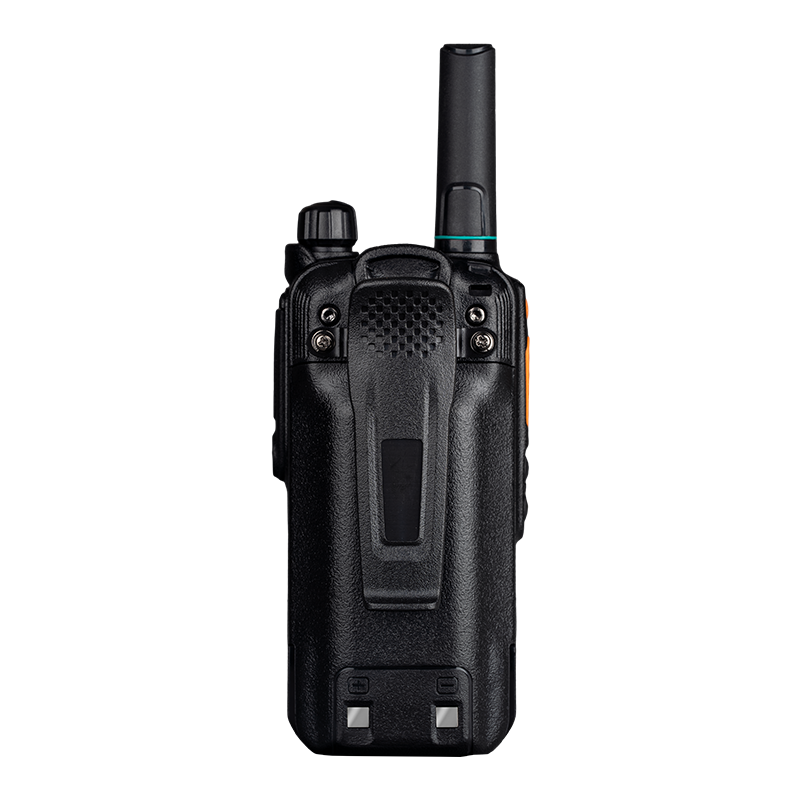

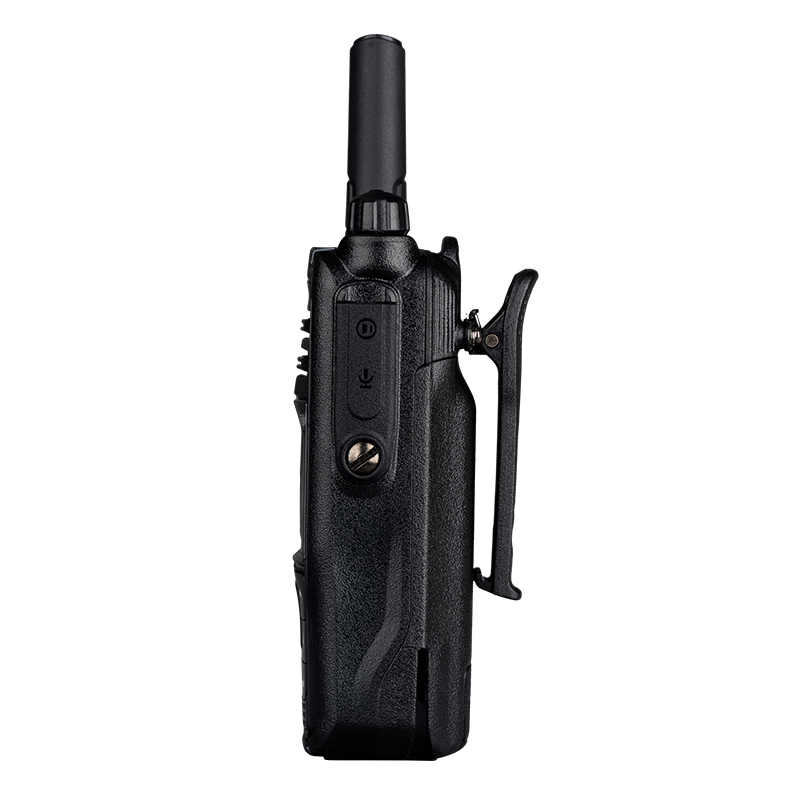

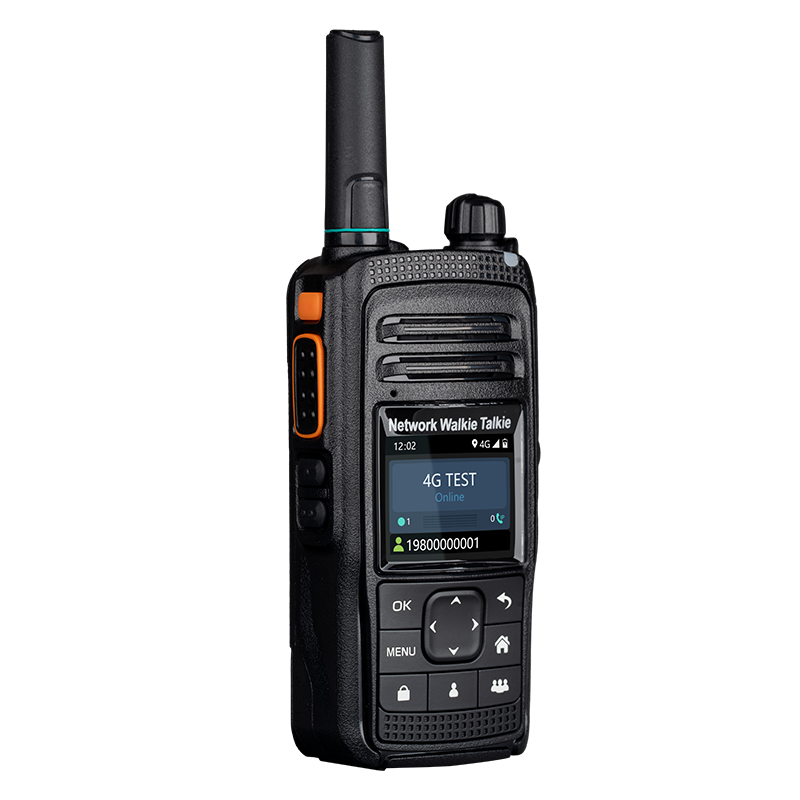

Z18 4G/LTE Handheld Push-to-Talk over Cellular (PoC) Radio
Z18
The Z18 is Push-to-Talk over Cellular (PoC) radio that offers nationwide coverage over 4G/LTE networks for your PTT communications. The user can enjoy license free nationwide radio communications. With a battery capacity of 4400mAh and easily meet the battery needs of long day operations.
Product Orientation Map
Features
Specifications
Accessories
Features
• High -precision GPS positioning system
• Group call, group call, single call function
• Super coverage, roaming nationwide
• Communication confidentiality, safe and reliable
• Quick charging technology, making it more convenient to use
• Excellent antenna, strong signal
• Ultra -sensitive Mike sound collection, making sound collection more real and casual
• Audio software cavity compensation technology, clearer and more real sound

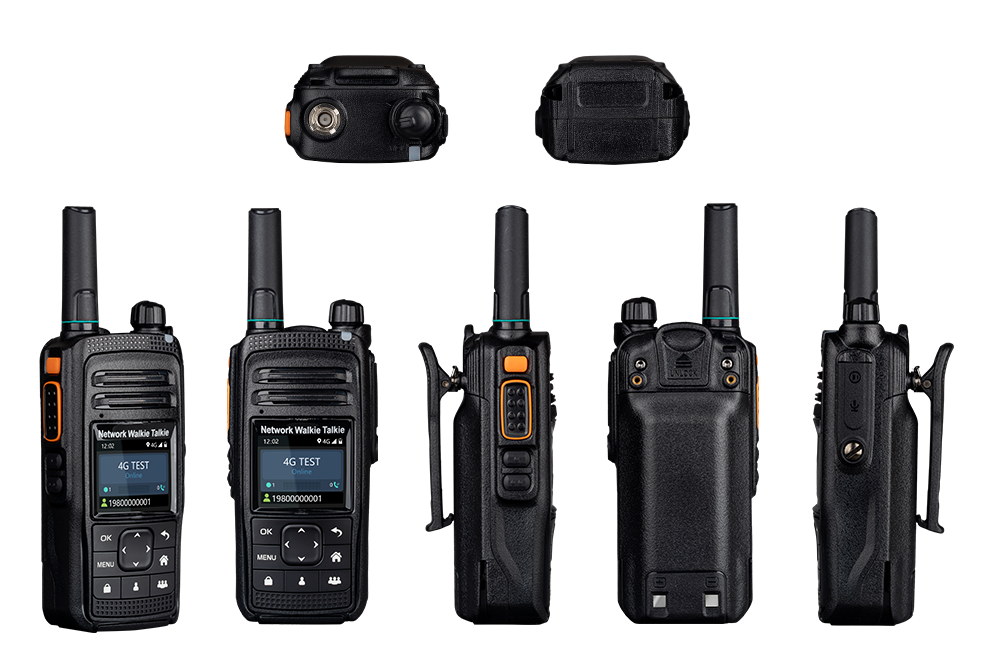

Appearance Introduction
Product Accessories
Belt Clip
Antenna
Hand Strap
Battery
Adaptor
| Item | Details | Remark | |
| Network |
L811 (European/Asia version) |
■GSM: Band2/3/5/8 ■WCDMA: Band1/2/5/8 ■TDD-LTE: Band38/40 ■FDD-LTE: Band1/2/3/5/7/8/20/28 |
Frequency bands can be customized |
| L813 (Asia version) |
■GSM: Band2/3/8 ■CDMA: 1X BC0 ■CDMA: 2000 Evdo Rev.A 800MHz ■TD-SCDMA: Band34/39 ■WCDMA: Band1/5/8 ■TDD-LTE: Band38/39/40/41 ■FDD-LTE: Band1/3/5/8 |
||
|
L817 (America version) |
■GSM: 850MHz,1900MHz ■WCDMA: Band1/2/4/5/8 ■FDD-LTE: Band1/2/4/5/7/12/13/17/25/26 |
||
| Operation system | Android based OS (5.1.1) | TDD CAT4, FDD CAT4 | |
| Dimensions | Includes Battery | 134mm*62mm*43mm | |
| Weight | Includes battery and antenna | Around 278g | |
| Display | Size（inch） | 1.77 | |
| Resolution | 160*128 | ||
| Connectors | Type-C | YES | Charging and Data Transmit |
| SIM | Single card | ||
| Battery Pack | Capacity（mAh） | 4400 | |
| Charger Current | 1000mA | ||
| Charging Time | ≤ 6 Hours | ||
| Memory | ROM | 4GB | |
| RAM | 4Gb LPDDR2 | ||
| Bluetooth | Bluetooth | BT 4.0 | Optional |
| WIFI | WIFI | 802.11b/g/n, 2.4GHz | Optional |
| WIFI Direct | YES | ||
| Wi-fi Router Android Hotspot(Wi-Fi Tethering) | YES | ||
| Positioning | GPS | YES | |
| Main Antenna | Rodlike | ||
| Antenna |
Auxiliary Antenna |
FPC | |
|
WIFI/BT Antenna |
FPC | ||
|
GPS/BD Antenna |
Ceramic Passive Antenna | ||
| Others | Working Temperature | -20℃ ~ 55℃ | |
| Ingress Protection (IP) Rating | IP54 | ||
| Dropping | 1.2m | ||
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Belt Clip
Antenna
Hand Strap
Battery
Adaptor
