H-28Y 4G/LTE Handheld Push-to-Talk over Cellular (PoC) Radio
H-28Y
The H-28Y is compact and small Push-to-Talk over Cellular (PoC) radio that offers nationwide coverage over 4G/LTE networks for your PTT communications. The user can enjoy license free nationwide radio communications. With a battery capacity of 4400mAh and easily meet the battery needs of long day operations.
Product Orientation Map
Features
Specifications
Accessories
Push to talk over cellular, support CDMA/GSM/WCDMA/LTE
Depend on powerful cellular, you could receive the call anytime, anywhere, and makes the communication seamless and efficient
GPS/Glonass/Beidou navigation
Using traditional trunking solution would occur high cost, the GPS function in H28Y supply you high efficiency in trunking, also improved productivity of the assignment can now be done based on the location by console.
Functional dispatching system
The Dispatch Console allows efficient management to increase productivity
Android operating system
It is Android 5.1.1, more flexible for users to adopt kinds of platform.
WiFi Function
Under WiFi coverage, users can freely choose to use WiFi connect, save cost on network.
Compact & Heavy-duty design
With IP54 design, H-28Y can uses in variety environment.
Huge battery capacity
With 4400mAh capacity, H-28Y supply you long standby time.
Application:
● Unique for:Security Guard, Construction site, Industry Production site, Commercial use like: Hotel, Hospital, University, Commercial Event; Sports
● Popular for:Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

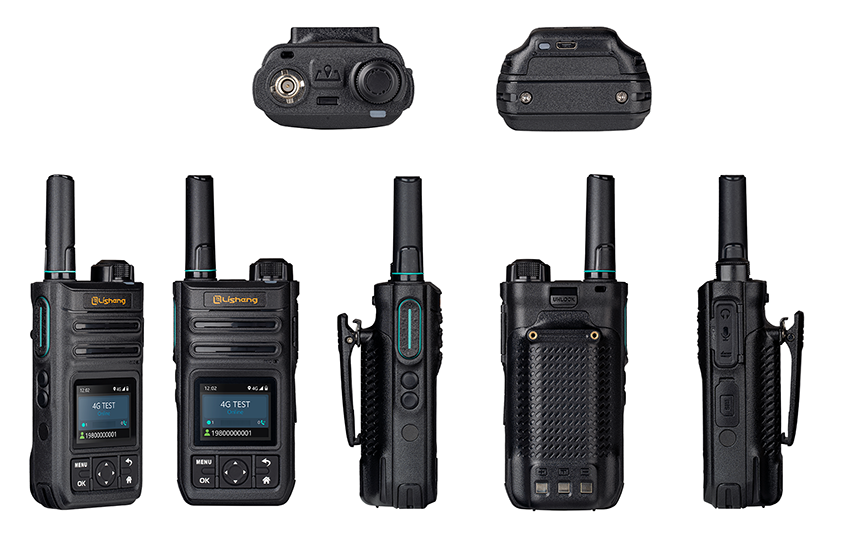

Appearance Introduction
Product Accessories
Hand Strap
Antenna
Belt Clip
Battery
Power Adapter
| Item | Details | Remark | |
| Network | Asia Version |
■GSM: Band2/3/8 ■CDMA: 1X BC0 ■CDMA: 2000 Evdo Rev.A 800MHz ■TD-SCDMA: Band34/39 ■WCDMA: Band1/5/8 ■TDD-LTE: Band38/39/40/41 ■FDD-LTE: Band1/3/5/8 |
Frequency bands can be customized |
| Euro Version |
■GSM: Band2/3/5/8 ■WCDMA: Band1/2/5/8 ■TDD-LTE: Band38/40 ■FDD-LTE: Band1/2/3/5/7/ 8/20/28 |
||
| US Version |
■GSM: 850MHz,1900MHz ■WCDMA: Band1/2/4/5/8 ■FDD-LTE: Band1/2/4/5/7/ 12/13/17/25/26 |
||
| Operation System | Android 5.1 |
TDD CAT4 FDD CAT4 |
|
| Dimensions | Includes Battery | 120mm*61mm*41mm | |
| Weight | Includes Battery and Antenna | Around 245g | |
| LCD | Size（inch） | 1.77 | |
| Resolution | 160*128(Piexl) | ||
| Connectors | Charger | Support External Charging Pin | Supports Desktop Charger |
| Type-C | Charging & Data Transfer | ||
| SIM Card | Single card | ||
| Memory Card | NO | ||
| Battery | Type | Li-polymer | |
| Capacity（mAh） | 4400 | ||
| Charger Current | 1000mA | ||
| Charging Time | ≤6 Hours | ||
| Memory | ROM | 4GB | |
| RAM | 4Gb LPDDR2 | ||
| Sound | MIC | 1 | Talking MIC |
|
Line-Control earphone |
YES | ||
| Speaker | 8R/1W | ||
| Speaker PA | YES | ||
| Bluetooth | BT | BT4.0 | |
| WIFI | Standard | 802.11b/g/n | 1X1 |
| WIFI Direct | YES | ||
| Wi-fi Router Android Hotspot(Wi-Fi Tethering) | YES | ||
| GPS | GPS | YES | |
| Antenna | 4G Main Antenna | Rodlike | |
| Auxiliary Antenna | FPC | ||
| WIFI/BT Antenna | FPC | ||
| GPS/BD Antenna | Ceramic Passive Antenna | ||
| Others | Belt Clip | Support | |
| Working Temperature | -20℃ ~ 55℃ | ||
| Ingress Protection (IP) Rating | IP54 | ||
| Dropping | 1.2m | ||
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Hand Strap
Antenna
Belt Clip
Battery
Power Adapter
